NewHydraulic Expansion Chucks
K10102642140280
High Clamping ForceRunout ≤ 0.003 mmExcellent Damping
36 article nos.
View details
ISO 9001:2015 Certified · Exporting worldwide
ISO 9001:2015 Certified · Exporting worldwide

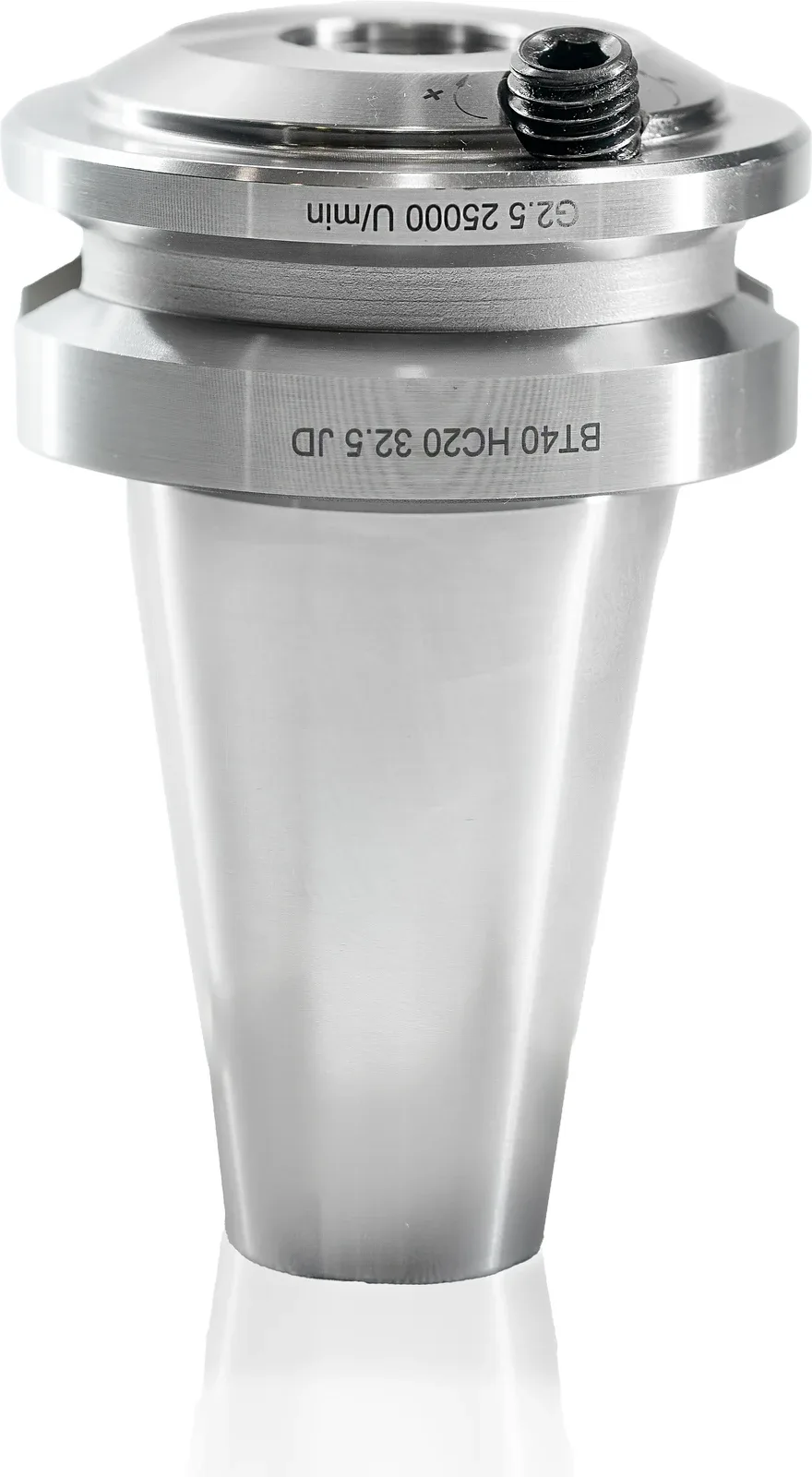

A short gauge-length hydraulic expansion chuck. Pulling the cutter as close to the spindle nose as the fixture allows is the cheapest rigidity you can buy, and it shows in the depth of cut you can take.
Order number
2 articles match
Select the dimensions below to find your order number.
A short gauge-length hydraulic expansion chuck. Pulling the cutter as close to the spindle nose as the fixture allows is the cheapest rigidity you can buy, and it shows in the depth of cut you can take.
Quality assurance
| Type of Product | Short GP Chuck |
|---|---|
| Interface | BT (MAS 403) |
| Shank & Holder | BT40 |
| Clamping Ø | Ø20, 3/4" |
| Execution | AD |
| Standard | DIN ISO 7388-2 / JIS B 6339 |
| Coolant Supply | Central (AD) |
| Balancing Grade | G2.5 @ 25,000 rpm |
| Availability |
2 article numbers
NewHydraulic Expansion Chucks
K10102642140280
36 article nos.
Special gauge lengths, clamping diameters and interfaces — engineered and manufactured in-house at Pune.
| Made to Order |
DrawingNewHydraulic Expansion Chucks
K10102629617282
4 article nos.
DrawingNewHydraulic Expansion Chucks
K10314637615283
2 article nos.
DrawingNewHydraulic Expansion Chucks
K10104637614281
1 article nos.
