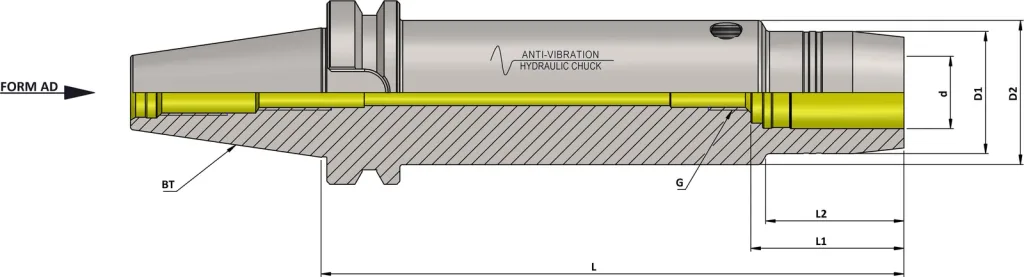

An anti-vibration hydraulic chuck (HC-AD/AV). A damping element inside the body absorbs the chatter energy that would otherwise reach the cutting edge, which shows up directly in surface finish and tool life.
Order number
29 articles match
Select the dimensions below to find your order number.
An anti-vibration hydraulic chuck (HC-AD/AV). A damping element inside the body absorbs the chatter energy that would otherwise reach the cutting edge, which shows up directly in surface finish and tool life.
Quality assurance
| Type of Product | Anti-Vibration Chuck |
|---|---|
| Interface | BT (MAS 403) |
| Shank & Holder | BT50 |
| Clamping Ø | Ø20, Ø25, Ø32, 3/4", 1", 1-1/4" |
| Execution | AD, AD/AV |
| Standard | DIN ISO 7388-2 / JIS B 6339 |
| Coolant Supply | Central (AD) |
| Balancing Grade | Balanced to G2.5 |
| Availability |
29 article numbers
